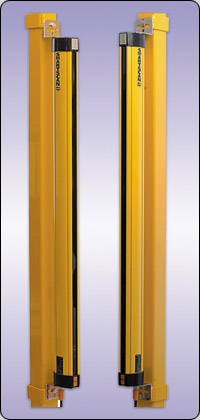

T4 Series: Product Specifications

Number of beams:	1 - 128
Detection height:	141 – 2391 mm
Range:	Perimeter guard: 20 metres 14 mm guard - 5 metres 30 mm guard - 10 metres 40 mm guard - 15 metres
Light type:	IR 880nm
Response time:	20ms
Operating temperature:	0� C to +50� C Heater Off -30� C to +40� C Heater On
Light curtain enclosure:	IP65
Power supply:	24V DC 2A � 10%
Current consumption:	500mA maximum
Light curtain connection:	M12 - IP65
Finish:	Aluminium chromate treated, yellow polyester powder coated
Classification:	BS EN 61496-1 Type 4 BS IEC 61496-2 Type 4 BS EN 954-1 Category 4 BS EN 61508 SIL 3
Warranty:	1 Year

Outputs:

Safety Outputs OSSD1 & OSSD2:	Electronic 50 mA
Status Output:	Electronic 50 mA
Mute Output:	Electronic 50 mA
Status and Mute Indication:	Status & condition LED’s on Light Curtain

Inputs:

Safety Monitoring (EDM):	ON = +24V DC
Reset:	ON = +24V DC
Mode select:	Reset - Green = Reset (+) switch Yellow = EDM (+) Auto Reset - Green = L+ Yellow = L-
Muting:	Dual mute inputs ON=+24V DC

Product Conformity:

The T4 Series has passed Type Examination from European Notified Body, SAFENET to the Machinery Directive. Certification provides users with an assurance that the T4 Series system meets all relevant legislative safety requirements.

Together with our ISO 9001:2000 certification full confidence can be placed in the quality, reliability and above all the safety of Smartscan equipment.
