 N Series light curtains provide a cost effective
solution for a variety of Industrial and Commercial sensing applications.
Overview.

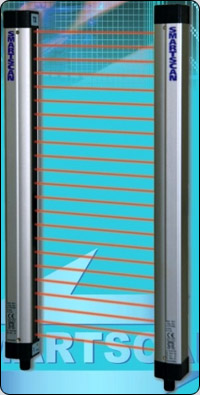

The N Series comprises of the Transmitter (Tx) and the Receiver (Rx) units providing 1
x electronic PNP output and 1 x electronic NPN output. Connection is made via M12 4 core
cable to both the Transmitter and Receiver unit, options for 3m and 10m cable lengths are
available and a mounting bracket kit is also required. The N Series is suitable for a
variety of non-safety applications including parts detection, presence sensing and
counting applications. A selection of accessories including mounting stands and mirror
systems are also available.
For full information on these and our other products please visit the downloads page.
|
 |
|
|
|
 |
Suitable for a variety of industrial and commercial sensing
applications |
|
|
|
Simple installation and alignment |
|
|
|
Slim-line enclosures (33x29mm) |
|
|
|
Dual electronic outputs |
|
|
|
Up to 7m scanning range |
|
|
|
1 year manufacturers warranty |
|
|
|
No range setting |
|
|
|
24V DC operation |
|
|
|
Diagnostic indicators |
|
|
|
Two part system |
|
|
|
M12 connectors |
|
|
|
IP65 rating |
|
|
|
|
|
|
|
|
