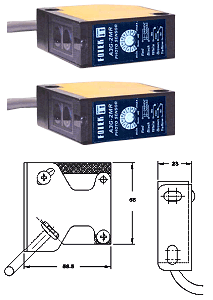

| Photocells. Mute
signalling photocell Type 011-140
The polarised retro-reflective photocell can be used in conjunction with MFU 011-151 to
provide the mute initiating signals to terminals B3 and B4 of the MFU.
A safety light curtain with mute control function is often used in the packaging
industry. In conjunction with a 1000 Plus Series light curtain and an MFU 011-151 two
photocells are positioned to scan across a conveyor, to detect loaded pallets prior to the
load interrupting the light curtain. |
 |

|
The photocell must be positioned to detect the load during the entire
time the load is passing through the light curtain.
Type 011-140 photocell has a maximum sensing range of 3 metres. Each photocell comes
complete with mounting bracket and retro-reflective mirror
|
| 011 - 140 |
Polarised
retro reflective photocell kit |
| Note: Each kit contains 1x photocell, 1x reflector mirror,
1x mounting bracket. |
|
|
Sensing
Distance |
3m |
| Transmitter Diode |
Red Light |
| Sensing Adjustment |
Trimmer |
| Protection Rating |
IP65 |
| Operating Voltage |
12-240V dc, 50/60Hz |
| Output |
Relay |
| Current Consumption |
2VA max |
| Response Time |
15ms |
| Enclosure |
Intensive ABS |
| Cable |
1.5m length |
| Operating Temp |
-20°C to +60°C |
| Humidity |
35% to 85% |
| Weight |
145g |
|
|
|
|
|
| Mute signalling photocell Type 011-141 The
through-beam infra-red photocell can be used in conjunction with MFU 011-151 to provide
the mute initiating signals to terminals B3 and B4 of the MFU.
A safety light curtain with mute control function is often used in the packaging industry.
In conjunction with a 1000 Plus Series light curtain and an MFU 011-151 two photocells are
positioned to scan across a conveyor, to detect loaded pallets prior to the load
interrupting the light curtain. The photocells are positioned to scan across a conveyor,
to detect loaded pallets prior to the load interrupting the light curtain.
Type 011 - 141 photocells have a maximum sensing range of 10 metres. Each transmitter and
receiver comes complete with a 1.5m cable. |
|
 |
|
|
| 011 - 141 |
Through-beam
photocell kit |
| Note: Each sensor kit contains 1x Transmitter unit , 1x
Receiver unit, Mounting brackets. |
|
|
Sensing
Distance |
10m |
| Transmitter Diode |
Infrared |
| Sensing Adjustment |
None |
| Protection Rating |
IP65 |
| Operating Voltage |
12-240V dc, 24-240V ac -
50/60Hz |
| Output |
Relay |
| Current Consumption |
2VA max |
| Response Time |
15ms |
| Enclosure |
Intensive ABS |
| Cable |
1.5m length |
| Operating Temp |
-20°C to +60°C |
| Humidity |
35% to 85% |
| Weight |
285g |
|
|
|
|
|
