The completely integrated safety solution for guarding end-of-line packaging machinery. A combination of self contained units and configurable muting patterns make the 8000 Series from Smartscan the superior choice. Includes multiple beam options allowing the light curtain to be mounted closer to the danger point and safety classification EN 954-1 Category 4.

Smartscan are the originators of the fully integrated ‘L’ and inverted ‘T’ shape safety light curtain to address the special safeguarding needs that arise with end-of-line packaging environments, specifically around the pallet entry and entry / exit zones, across conveyors.

The special shape of the ‘L’ and ‘T’ safety light curtains permits the incorporation of fully integrated mute sensors providing the customer with a simple, user-friendly solution.

Safeguarding pallet entry / exit zones

In most machine applications the integrated system is the ideal solution as it eliminates the need for aligning and installing additional mute sensors with all the problems such devices introduce. The mute initiating system suppresses the shut down signal from the light curtain during a pallet transfer without interruption to the machine cycle. However, should a person attempt to pass through the entry / exit area, the light curtain will instantly detect them and shut down the operation of all associated machinery.

Overview

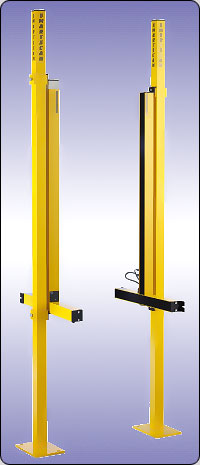

The 8000 Plus Series comprises of the Transmitter (Tx) and the Receiver (Rx) units with optional bolt on mute modules. An interface cable connects the Transmitter to the Receiver unit and the User cable provides the interface to the machine control panel. The system provides a fully integrated solution including cross-beam and parallel beam muting options all housed in a robust IP66 enclosure for harsh wet environments. In addition the 8000 Plus provides multiple beam options allowing the light curtain to be mounted closer to the danger point. It also offers a safety classification of EN 954-1 Category 4 for safeguarding high-risk machines. Two, three and four beam models for safeguarding around the perimeter of a machine are included in the model range. These models have a scanning range of 4 – 10m. A selection of accessories including inductive loop control boxes, reset stations and mounting stands are also available.

For full information on these and our other products please visit the downloads page.

Features: Configurable cross beam muting (1 - 2.5m range) and parallel-beam muting (0.5 - 5m range) Perimeter guarding 0.5 - 30m scanning range (model dependant) Configurable for both pallet infeed and outfeed applications Two part safety system with fully integrated control functions Heavy duty enclosures rated IP66 for harsh, wet and dusty environments Mute enable input for increased safety integrity Safety output relay contacts (dual channel) Status output relay contact Safety monitored guard override facility Mute lamp output Diagnostic & status indicators External device monitoring (EDM) Integrated monitored mute beacon option Application specific software options Solutions for cold store applications Simple installation and alignment 1 year manufacturers warranty Safety integrity classification EN 954-1 - Category 4
